Beam Oceana 400 Maritime Fixed Phone - OC400





Usage:
Maritimo
Dienstleistungen:
Voice
Data
SMS
E-mail

Preis: 1.681,93 EUR + MwSt.

Oceana 400 is a slimline terminal purposely designed for use in maritime applications where the simplest access to reliable voice and data communications services is required. Featuring an intelligent RJ11/POTS interface, it enables connection of up to 5 standard corded/cordless phones or integration to a PABX system. It can supporting cable runs of up to 600m (2000 feet), with in-built intelligence to support standard ring, busy and dial tones. Other key features of the Oceana 400 include: a high quality IP53 rated enclosure (rainproof when wall mounted), wall or desk mountable and USB data access. The Oceana 400 is designed to operate with the Inmarsat Fleetphone service and is supplied with a dedicated active marine grade antenna system to provide a completely integrated solution that is ready for use anytime.

Included in the Package:

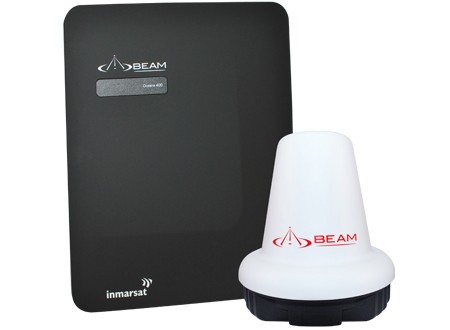

  • Oceana 400 Terminal
  • ISD710 Maritime Antenna (Active)
  • 110-240V AC Plug Pack 15v DC Out
  • 10-32V DC Power Cable
  • USB Cable
  • 2 x screws for wall mounting
  • User Manual
  • Quick Start Guide

Preis: 1.681,93 EUR + MwSt.
EUR 2018.32 (VAT included)
(USD 1965.00)

*SIE SOLLTEN einen Kostenvoranschlag zu beantragen, wenn Sie bestimmte Zubehörteile kaufen müssen, zum Beispiel eine Antenne und Kabel, so dass wir Ihnen das richtige Kabel für Ihre Antenne auf Ihrem Gerät mit allen Adaptern, die Sie benötigen.


Features:
Design
  • High quality enclosure
  • IP53 Rated (rainproof)*
  • Wall Mounting option
  • Integrated antenna connections
Power
  • 10 – 32V DC Input
  • 110/240V AC Plug pack included

INTELLIGENT POTS / RJ11 INTERFACE
  • Supports up to 600m (2000 feet) of RJ11
  • Dial, ring & busy tones
  • Integrated to PABX System
  • Support standard corded, cordless and DECT phones
  •  Auto-dial & speed dials available

OTHER KEY FEATURES
  • Status LED indication for registration/signal, call and messaging
  • USB data access
  • Basic SMS support from Falcon application (via USB port)
  • Rear access SIM port
  • 12 month warranty



* IP53 rated when wall mounted only.
Specifications:
Power Specifications (Average Power Consumption with Active Antenna Connected @ 15V Power <45mW):
  • Standby 0.21A   3.1W
  • Transmit 0.57A  8.5W
  • Peak Current Current:1.73A  25.9W
Physical Specifications:
  • Dimensions OC400 only 240 x 190 x 53 (mm)
  • Weight  0.58kg 8.0 x 7.5 x 2.1 (inches) 1.28lbs
Environment Specifications:
  • Operating Range: -20°C to +55°C  (-4°F to +131°F)
  • Storage:  -30°C to +80°C (-22°F to +176°F)
  • Humidity Degrees:   < = 75% RH
Transceiver
  • Inmarsat-4 Satellite
  • GMR-2+ Frequency Bands
  • Tx Operating Frequency: 1626.5 - 1660.5 MHz
  • Rx Operating Frequency:1518 - 1565 MHz (Inmarsat) and 1565.19 - 585.65 MHz (GPS)
  • RF Output Impedance: 50 Ohms
  • Carrier frequencies: Channel 0 = 1626.525 MHz and Channel 169 = 1660.475 MHz
  • TX Modulation: GMSK
  • RX Modulation: OQPSK

Connectors / Interfaces
  • POTS/RJ11: RJ11/2-wire, 5REN @ 600m, Adjustable dial, ring, busy tone configured frequency and adaptive impedance
  • Antenna: TNC-Female
  • GPS Antenna: SMA-Female
  • 10-32V DC: 4-way microFit (AC/DC adaptor, or DC lead)
  • Configuration /Data: USB Micro
Certifications:
  • Inmarsat Type Approval
  • FCC
  • CE Compliance
  • Electrical Safety
  • RoHS
  • Industry Canada
  • C-Tick
  • IP53 Rating
  • 5 = Protected against dust limited ingress (no harmful deposits)
  • 3 = Protected against direct sprays of water up to 60° from the vertical.
Manufactor: BEAM Manufactor Website:

www.beamcommunications.com
