Beam Oceana 800 Maritime Fixed Phone - OC800





Usage:
Maritimo
Services:
Voice
Data
SMS
E-mail

Prix: 2.400,00 EUR +TVA

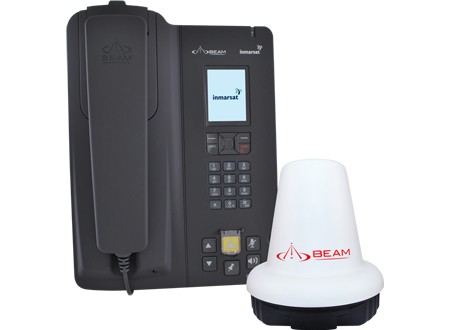

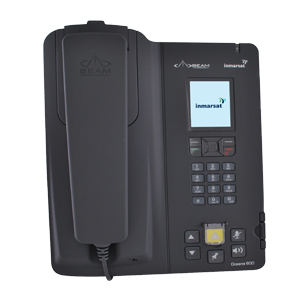

Oceana 800 is an all-in-one maritime communications terminal specifically designed with a IP54 rating enclosure to be utilized in a wide variety of marine applications throughout the world. Featuring an intelligent RJ11/POTS interface it enables connection of up to 5 standard corded/cordless phones or integration to a PABX system. It can support cable runs of up to 600m (2000 feet) with in-built intelligence to support standard ring, busy and dial tones. The Oceana 800 has an integrated GPS engine providing intelligent tracking and instant message reporting via SMS or email. The Tracking and Instant Message functionality can be configured to support automated periodic polling or instant message reporting with a single button press. Oceana 800 has an intuitive color LCD display that provides easy and convenient access to send and receive SMS or to retrieve phone numbers stored in the terminal. Other key features of the Oceana 800 include: a secondary SIM socket to override the internal SIM, an active privacy handset, in-built handsfree speakerphone, integrated bluetooth, USB data, desk or wall mountable. The Oceana 800 is designed to operate with the Inmarsat Fleetphone service and is supplied with a dedicated active marine grade antenna system to provide a completely integrated solution that is ready for use anytime.

Included in the Package:
  • Oceana 800 Terminal
  • ISD710 Maritime Antenna (Active)
  • Privacy Handset
  • 1 x spring cup (attached to terminal)
  • 1 x Springless Cup
  • 110-240V AC Plug Pack, 15V DC Out
  • 10-32V DC Power Cable
  • USB Cable
  • 2m Alert wiring loop
  • Wall mounting plate
  • User Manual
  • Quick Start Guide
  • Installation Guide
Prix: 2.400,00 EUR +TVA
EUR 2880.00 (VAT included)
(EUR 2400.00)

*Vous devriez demander UN DEVIS lorsque vous avez besoin d'acheter des accessoires spécifiques: par exemple une antenne et le câble afin que nous puissions vous donner le bon câble pour connecter votre antenne à votre appareil avec tous les adaptateurs que vous pourriez avoir besoin.


Caractéristiques:
Design
  • High quality IP54 rated maritime enclosure
  • Compact all-in-one design
  • Wall or desk mounting options
  • Locking bolt to wall mounting

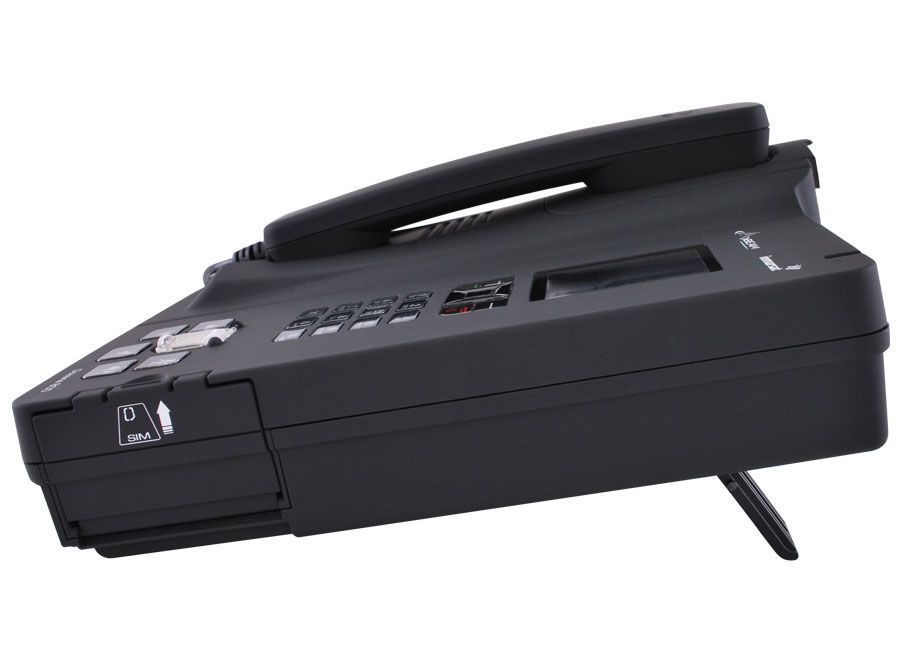

  • Dual SIM enclosures

Power
  • 10 – 32V DC Input
  •  110/240V AC Plug pack (included)

INTELLIGENT POTS / RJ11 INTERFACE
  • Support up to 600m (2000’) of RJ11 cable runs
  • Standard Dial, ring & busy tones
  • Integrates easily to PABX System
  • Support standard corded, cordless and DECT phones
  • Auto-dial & speed dials available

VOICE CALLING FEATURES
  • RJ11/POTS interface
  • In-built phonebook/contacts
  • Privacy handset calling
  • In-built handsfree speakerphone
  • Access from PABX or other corded/cordless handsets
  • Bluetooth headsets (not included)

INSTANT MESSAGE AND TRACKING FEATURES
  • Supports LeoTRAK-Online and other tracking applications
  • Dedicated internal GPS receiver

Tracking:
  • Periodic location messages
  • SMS, SMS to email
  • Location message sent upon button press
  • Ignition ON/OFF reporting
  • Remote location polling via SMS
Instant Message Mode:
  • Single button press on terminal
  • Instant GPS location messages
  • Supports external “man down” pendant or button
  • Remote clearing of alert via SMS

Tracking / Instant message content includes:
  •  Message ID#
  • Header
  • Latitude/Longitude
  • Speed
  • Direction

Other Key Features
  • Colour LCD screen
  • Accessible control buttons
  • Integrated antenna connections
  • Slimline privacy handset
  • In-built speakerphone
  • Cable routing LHS/TOP/BOTTOM
  • Voice, data, SMS
  • 12 month warranty

Specifications:
Power Specifications (Average Power Consumption (Active Antenna ConnectedCurrent @ 15V Average)
  • Standby: 0.22A3.2W
  • Transmit (RJ11/POTS): 0.58A 8.7W
  • Transmit (Speakerphone): 0.53A7.9W
  • Sleep Mode: 5mA 75mW
  • Peak Current: 1.7A 26W


GPS Module (internal)
  • Channels: 14 tracking, 51 Channel Acquiring
  • Update Rate: 1Hz
  • Accuracy:Position 2.5mCEP, Velocity 0.1m/s,Timing 300ns
  • Acquisition TTFF: Cold 29sec, Hot 1sec
  • Sensitivity: -161 dBm
  • Operational Limits: Altitude 18000m , Velocity 515m/s
  • Dynamics: 4G

Physical Specifications
  • Dimensions 241 x 185 x 93 (mm) - 9.49 x 7.28 x 3.66 (inches)
  • Weight OC800 only:1.27 kg - 2.80 lbs

Environmental Specifications

  • Operating Range: 20°C to +55°C or -4°F to +131°F
  • Storage: 30°C to +80°C or -22°F to +176°F
  • Humidity 95%

Transceiver
  • Inmarsat-4 Satellite: GMR-2+ Frequency Bands
  • Tx Operating Frequency: 1626.5 - 1660.5 MHz
  • Rx Operating Frequency: 1518 – 1565 MHz (Inmarsat) - 1565.19 – 1585.65 MHz (GPS)
  • RF Output Impedance: 50 Ohms
  • Carrier frequencies: Channel 0 = 1626.525 MHz and Channel 169 = 1660.475 MHz
  • TX Modulation: GMSK
  • RX Modulation: OQPSK


Instant Message
  • Instant Message: Single button press
  • 1 x Alarm Loop: Bare wire – "Normally Closed" Loop IN to OUT
  • Track. Inbuilt - single key press

Connectors / Interfaces
  • POTS/RJ11: RJ11/2-wire, 5REN @ 600m, Adjustable dial, ring, busy tone configured frequency and adaptive impedance
  • Inmarsat Antenna: TNC-Female
  • GPS Antenna: SMA-Female
  • 10-32V DC. 4-way microFit (AC/DC adaptor, or DC lead)
  • Privacy Handset Port: RJ9 connector
  • Configuration /Data: USB Mini B
  • Speakerphone: In-built speaker/microphone

Certifications
  • Inmarsat Type Approval
  • FCC
  • CE Compliance
  • Electrical Safety
  • RoHS
  • Industry Canada
  • C-Tick
  • IP54 Rating
  • 5 = Protected against dust limited ingress (no harmful deposits).
  • 4 = Protection against water sprayed from all directions - limited ingress permitted.

Manufactor: BEAM Manufactor Website:
